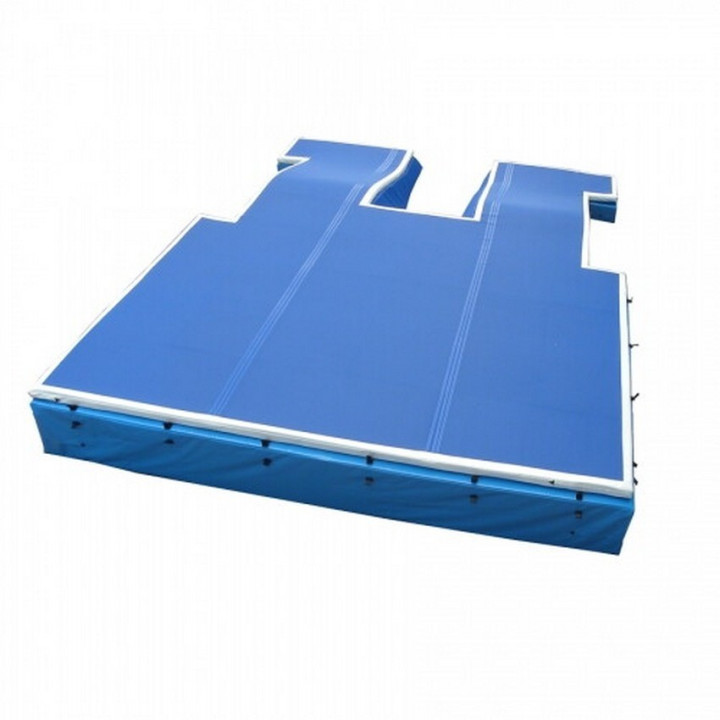

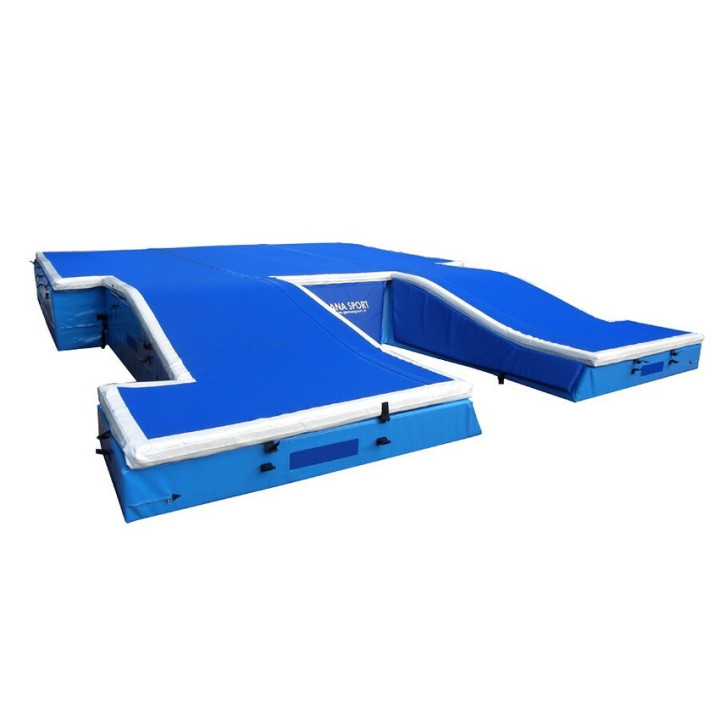

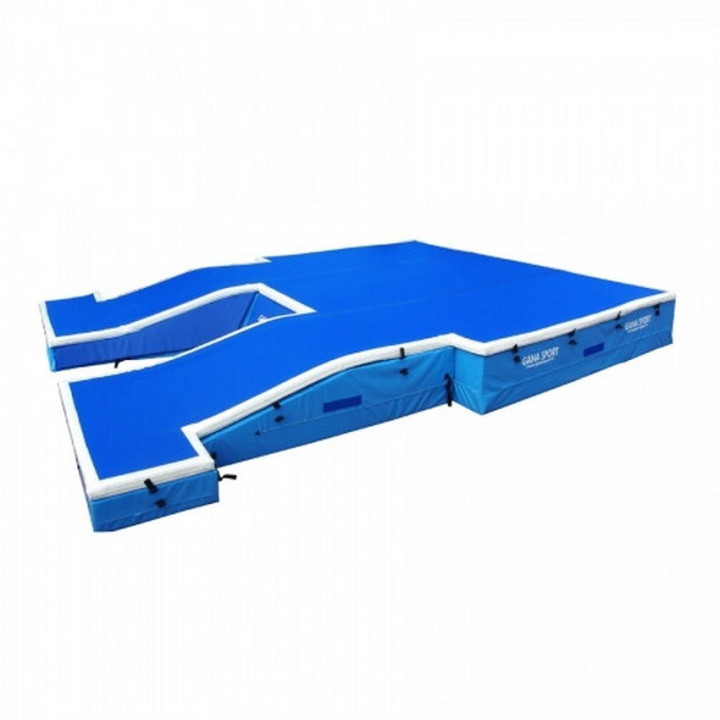

Pole vault fall area complete with nail-proof mat

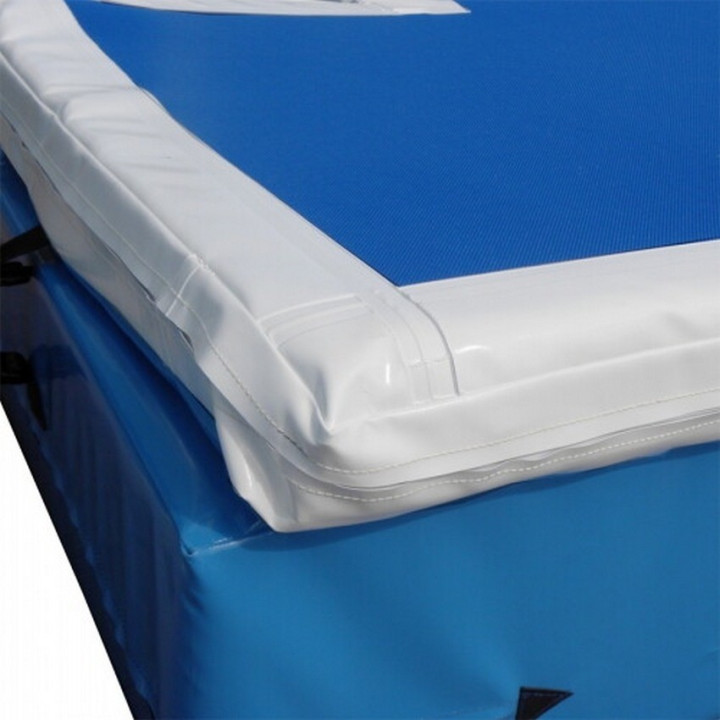

Pole vault fall area , composed of shock-absorbing mattresses in expanded polyurethane foam (PU), with a density of 21kg/m³, 70 cm thick (+10 cm of anti-nail mat) , and covered in tear-proof PVC, with weight 650gr/m²

The internal construction is of the "alveolar" type, in order to better cushion the athlete's fall, while the PVC covering is equipped with air leaks , which avoid the "balloon" effect during the impact phase with the mattress.

The mattresses are all tied together with snap buckles.

The construction scheme includes a base , with a total size of 500x500 or 600x600 cm (depending on the area chosen) to which the 2 or 2.5 meter slides must be added.

These benefit from the same honeycomb construction technique, and are made in four bodies (two on each side) of which two degrading from 80 cm, up to 40 at the outermost point facing the run-up.

Above, the mat with anti-nail net is positioned, made in a single solution, with a thickness of 10 cm , bringing the fall area to a height of 80 cm .

The Pole Vault landing area is available in the following sizes:

• CM 700x500x80(h)
• CM 850x600x80(h)

To complete the fall area it is possible to purchase the custom-made rain cover , essential for protecting the mattress from atmospheric agents, and the painted or galvanized steel lifting structure .
