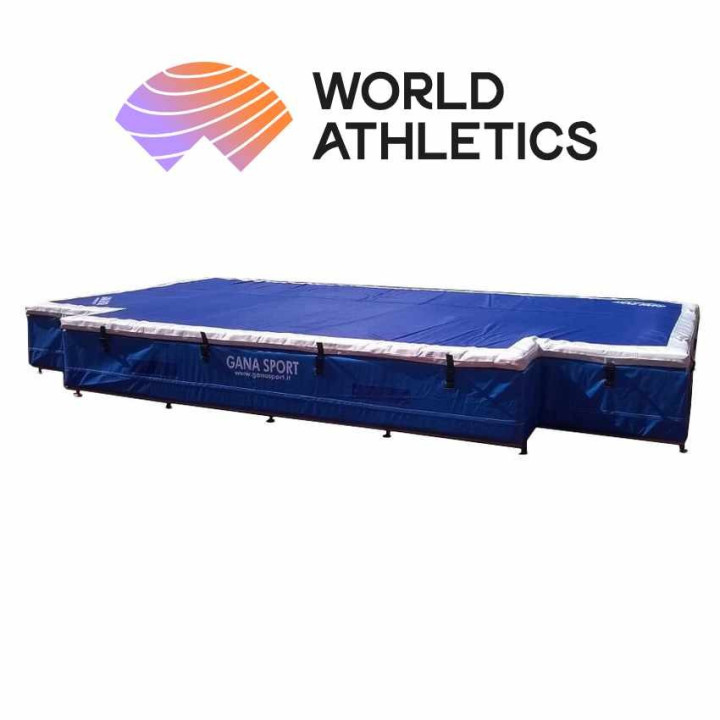

High jump landing area complete with anti-nail mat. World Athletics approved

High jump landing area , dimensions 600x400x70(h) cm, World Athletics approved.

The fall area, in this version with dimensions 600x400x70(h) cm, has World Athletics approval , this is made with blocks of expanded polyurethane foam (PU) , with a density of 21kg/m³ and a thickness of 60 cm . each covered with a tear-proof PVC lining , weighing 650gr/m², held together by snap anchor clips

The internal construction is of the "alveolar" type, in order to better cushion the athlete's fall, while the PVC covering is equipped with air leaks , which avoid the "balloon" effect during the impact phase with the mattress.

Above, the mat with anti-nail net is positioned, 10 cm thick , bringing the fall area to a height of 70 cm . made in a single solution.

As with the standard 600x400x70(h) cm models, this version of the fall area is also made without recess for the uprights, unless specifically requested by the customer.

To complete the fall area it is possible to purchase the custom-made rain cover , essential for protecting the mattress from atmospheric agents, and the painted or galvanized steel lifting structure .

The approval certificate and the technical diagram are available in the "attachments" section
